RR 568 Carlton 3 Foot x 9 Inch Column Radial Drill

PDFPrintEmail
IMG_8806

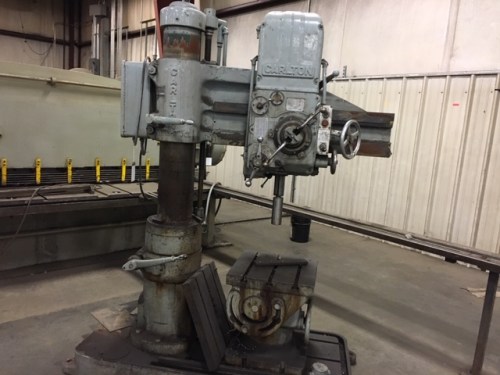

Carlton 3 Foot x 9 Inch Column Radial Drill

S/N: 0A1061

5 HP Main Motor

3’ Arm

9” Column

27” Vertical Travel

Tilting Box Table, 20.5” x 20.5” x 23” Tall

30-1/2” x 68” x 90” Tall



Arm length

36"

Column diameter

9"

Longitudinal travel of head on arm

27"

Vertical travel of arm on column

27"

Drilling capacity, steel

1-3/4"

Drilling capacity, cast

2"

Spindle travel

12"

Spindle diameter

2-5/8"

Spindle speeds (12)

80 to 1500 RPM

Spindle feeds (6)

.004 to .025 inch/revolution

Spindle taper

No. 4 MT

Distance spindle ctr to column face

9" minimum to 36" maximum

Distance spindle to base

16" minimum to 54" maximum

Working surface of base

31" x 41"

Motor

5 HP

Volts

220 / 440

Phase

3

Cycles

60

Approximate dimensions

89" x 40" x 94" high

Approximate weight

5,600 lbs.





$4500

FOB: Ft Smith, AR



Sales price without tax $4,500.00
