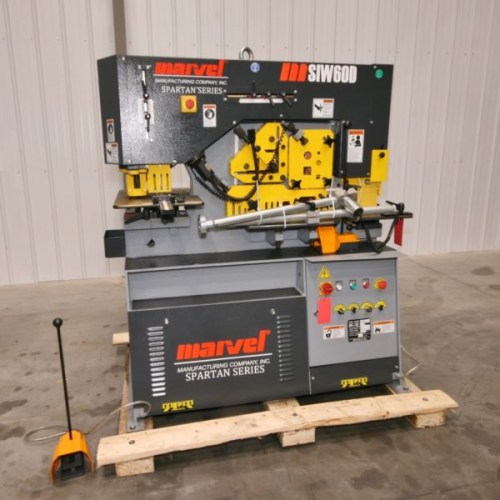

RR 434 Marvel Spartan MSIW60D

New in stock in Van Buren, base machine with options available

Upper Shear Blade: Provides for minimum distortion. Two (2)

usable edges.

Blade Length: 12-1/2”.

Angle Flange Trim: 3”.

Flat Bar Shear Work Height: 35-3/4”



ANGLE SHEARING



Maximum Capacity – 90 degrees: 4” x 4 x 1/2”.

Maximum Capacity – 45 degrees: 2-1/2” x 2-1/2 ” x 3/8”.

Shearing with no material loss and minimum deformity.

Shear Blades: Four (4) usable edges.

Angle Shear Work Height: 44-1/2”.

BAR SHEARING



Round Bar Max. Capacity: 1-1/2”.

Square Bar Max. Capacity: 1-1/2” x 1-1/2”.

Six Cavity Round and Square Bar Shear Sizes:

Round: , 1/2”, 1”, 1-1/2”

Square: 3/4”, 1-1/2”

Channel Shear Max. (optional): 4”.

I-Beam Shear Max. (optional): 4”.

Bar Shear Work Height: 44-1/2”



NOTCHING



Rectangular Notcher: 1-3/4” x 3-1/2” x 3/8”.

Electrical Interlock Safety Guard

Gauge Table with Stops: For precise positioning.

Notcher Work Height: 35-1/2”.



OTHER STANDARD EQUIPMENT



Five (5) Sets of Punches and Dies:

Punches: 9/16”, 11/16”, 13/16”, 15/16”, 1-1/16”

Dies: 19/32”, 23/32”, 27/32”, 31/32”, 1-3/32”

CPD Series: 26 punch, 62 die.

Magnetic Base Work Light

Adjustable Electric Back Gauge (36”)

24 Volt DC Control Voltage

Scrap Boxes at Punching and Notching Stations

Adjustable Stroke Depth at Punch

Two (2) Full-Control Foot Pedals

Two (2) Hole Die Holders

Two (2) Piece Gauging Table at Punch Station

Keyed Punch Holder for Shaped Tooling

Standard Voltage 230 or 460 Volt, 3 Phase, 60Hz

Machine Net Weight: 3350 lbs

Machine Dimensions: 60” L x 39” W x 74” H

3’ Electric Back Gauge





Base Price MSIW60D Complete machine ready to

operate………………………………………………….$14,500.00

Sales price without tax $14,500.00
