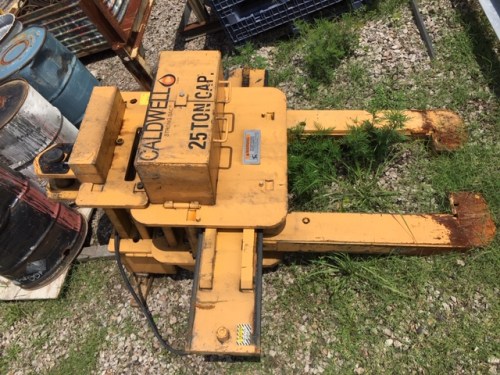

RR 613 Caldwell 85R-25-72 Coil Picker

PDFPrintEmail
IMG_1079



RR 613 Caldwell 85R-25-72 Coil Picker

50,000 lbs/ 25 Tons

Model# 85R-25-72

S/N: 03-44167

Weight : 4430 lbs

MinCoil Width: 20”, max Coil Width: 72”

Head Room: 80-7/8”

Throat: 32”

PRODUCT FEATURES: • Motorized leg drive maximizes the efficient handling of coils. • Leg drive speed - 2.8” per second. • Narrow aisle stacking maximizes coil storage floor space. • Curved lifting pads for coil protection. • High impact plastic toe rollers prevent lifter foot contact. • Anti-clamp limit switch protects coil during closing of lifter. • Heavy duty torque limiting drive protection during maximum open/closed conditions. • Lockout limit switch prevents inadvertent leg opening during lift. • Alloy steel pin bail. • Easily replaceable slide wear guides. • Design allows for easy maintenance access to drive components. • Designed to operate on AC power supply. • Motorized 350° rotation at approximately 2 RPM. • Complies with ASME standards.



$17,500.00

FOB: Van Buren, AR



Sales price without tax $17,500.00
