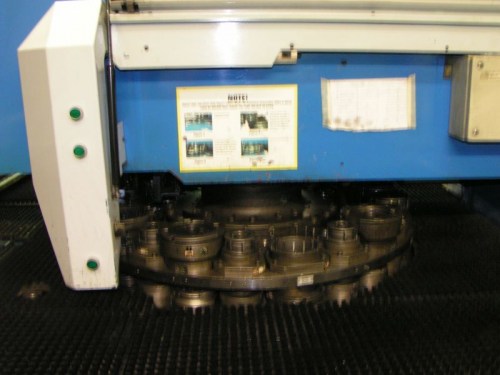

RR 093 Finn Power F5 25 Turret Punch,a

Finn Power F5-25 SB/NO CNC Turret Punch

S/N: 9.1-F52559296, Year: 1996(Shipped Late 1997)

Siemens 840 D CNC Control

Travel: X-100",, Travel:Y-50"

Punch Force: 33 Tons, 400 Hits Per Min on 1" centers, 900 Hits Per Minute Nibbling

Hydraulic Punch Stroke/ Clamps Pneumatic

21 Station Turret,(3 Multi tools, 20, 10, 6 Per Station) 3.5" Max Punch Size

Turret Rotation: 30 r/min./Tool Change:1-2.5Seconds

3 Tool Clamps, 5/16" Max Thickness, 440 Lbs Max Sheet Weight

Traversing Speed 3940 Inches Per Minute

8 Sheet Tables w/ brushes

Accepts any tool style from Mate or Wilson

Huge Amount of Tooling

Jet Cam Software

Approx Foot Print: 17' x 17' x 7' Tall, 26,500 lbs.

Sales price without tax $35,000.00
